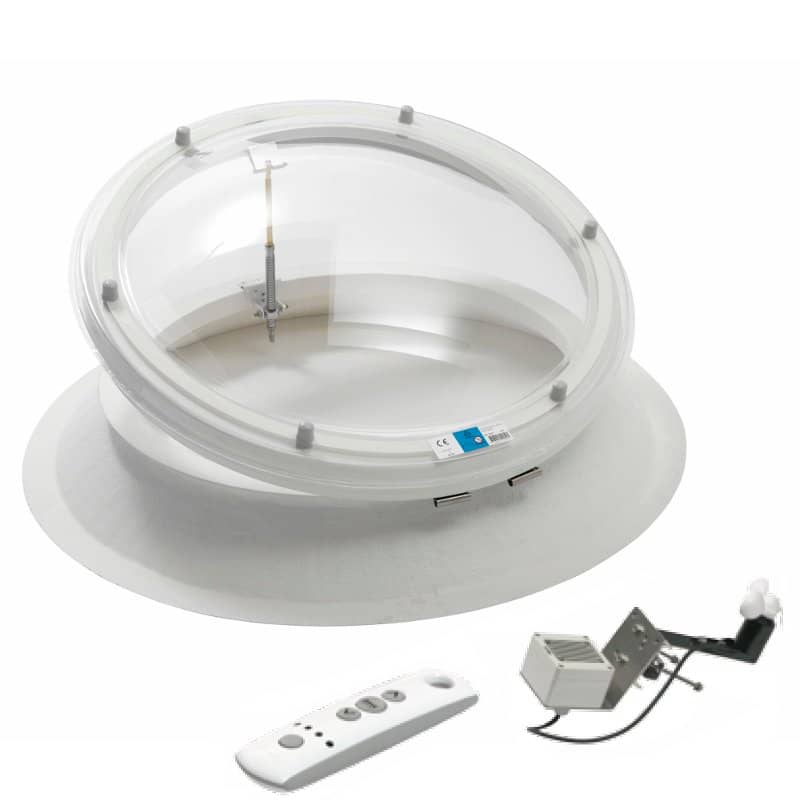

Coxdome Circular Electric Opening Roof Dome

Featuring an electrically powered chain link actuator complete with a toggle switch (remote control, wind and rain sensors can be added as an optional extra, if requested). Available in a range of sizes the domes are available with double, triple or quadruple glazing. Manufactured with a double layer GRP (Glass Reinforced Plastic) with polyurethane insulation, the upstands are compatible with all popular flat roofing membrane systems. All sizes listed are the structural opening sizes/internal sizes.

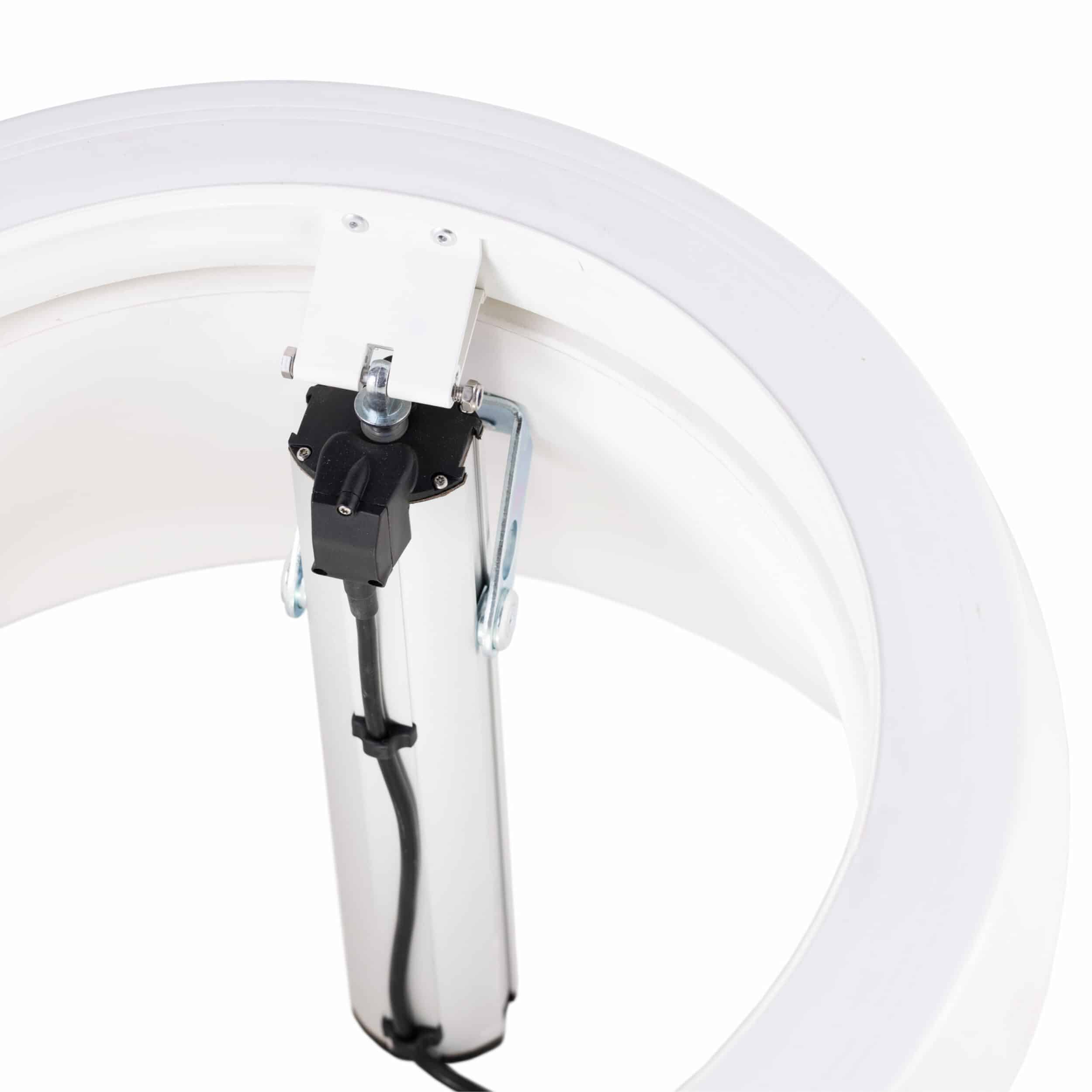

Glazing is available in spherical in Clear, Diffused, Opal, and Cool & Clear, and is available with a choice of two ventilation options. All ventilation frames are manufactured from extruded white PVC-u sections. The electrically powered option use a chain link actuator and is operated from a 240V mains supply. A toggle switch is supplied as standard. Rain, wind and temperature sensors along with a remote control can also be specified with the electrically operated version. Maximum ventilation is approximately 400mm with three optional fixed intermedery positions at 100mm, 200mm & 300mm.
