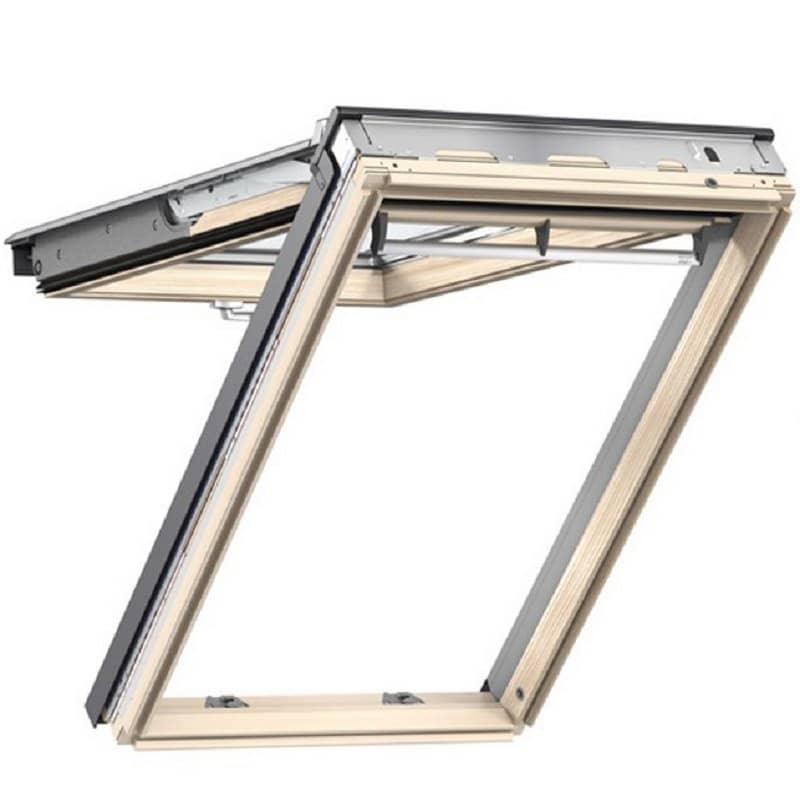

Velux Manual Top Hung Roof Window Pine Lacquered

The Velux GPL Top-Hung Roof Window is manufactured in a high quality natural pine finish. It is suitable for installation into roof pitches between 15° and 55°. For installations between 55° and 75° special springs will be required. Not advised for high level (out of reach) installation. The bottom edge of the window should be placed approx. 0.90 – 1.20m above the floor for ease of opertion. Due to the unrestricted opening area, a larger selection of roof windows are suitable for fire escape purposes.

Product features:

High quality natural pinewood coated with impregnation and layers of water-based acrylic clear lacquer.
The sash can remain open in any position up to an angle of 45°.
Bottom handle for convenient operation.
Ventilation flap and integrated dust and insect filter.
Maintenance-free exterior covers.
Can be installed in roof pitches between 15° and 55°.
Installation in roof pitches from 55° up to 75° is possible, but specially manufactured springs must be ordered.
All sizes above 55 x 118 cm are suitable for emergency escape requirements.

Materials:

High quality natural pinewood coated with impregnation and layers of water-based acrylic clear lacquer
Insulating glazing unit
Maintenance-free exterior covers in lacquered aluminium, copper or zinc

Maintenance:
The pane should be cleaned with a soft, clean, lint-free or non-abrasive sponge. The rest of the window can be cleaned with with ordinary household cleaners. The filter can be removed and either washed or replaced.

Glazing Options
The Velux Top Hung Roof Window Pine Finish comes available in the following glazing option:

Laminated Inner Glazing - 70 Pane
The 70 Pane has a laminated inner pane and a toughened outer pane designed for safety.
