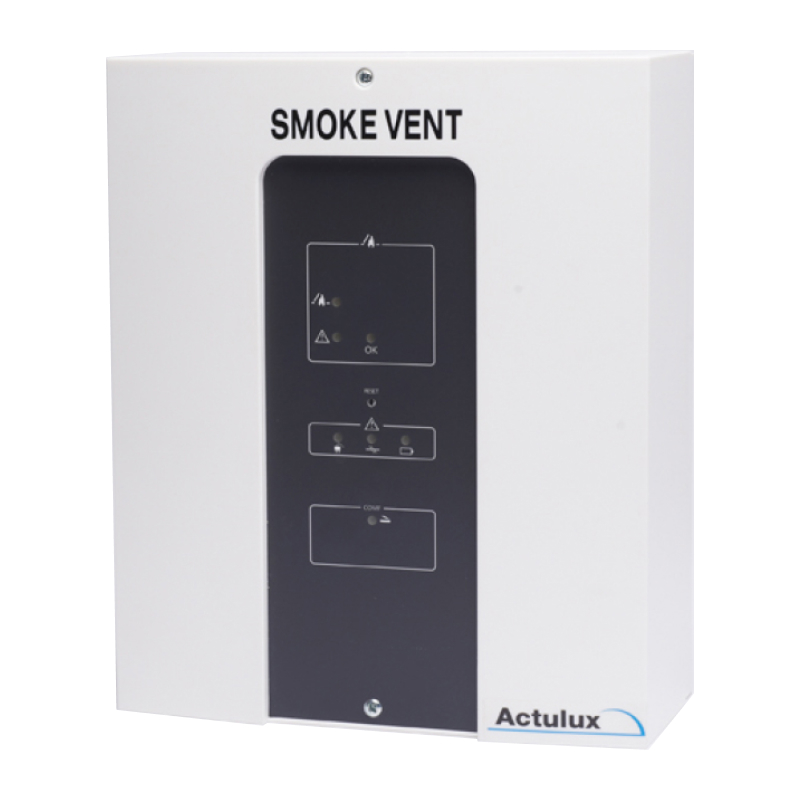

Brett Martin Mardome AOV Control Panel

The Control Panel can be used for electrical opening of skylights, smoke hatches, rooflights or similar in connection with fire and comfort ventilation.

24VDC max. 5A or 8A– EN12101 part 9 and part 10 complaint single zone 5 amp or 8 amp 24 volt output AOV Control Panel – offering comfort functions including thermostat and wind/rain sensor inputs, fault diagnoses LED’s, Fire & Fault volt free outputs.

The Control Panel has different inputs with monitoring which can be achieved by e.g. fire switches, smoke detectors, heat detectors and CCS Systems.

The control panel has built-in 72 hours battery back-up.  Simple dip switch set up and complete with 2no. 7ah batteries.

By a unique bus system consisting of a 3 wire cable the Control Panels can be mutually connected so that up to 35 Control Panels can be connected and operate as an integrated system. The Control Panels communicate with each other via a 3 wire bus connection. This could e.g. be a 3×0.5 mm² fireproof cable.

If the temperature in the control panel exceeds 75°C, the Control Panel will enter ALARM condition.

The Control Panel can weigh up to 7 kg and must be installed on a stable wall. The mounting holes for wall mounting are placed on the metal plate underneath the plastic lid. When mounting several Control Panels side by side, the distance between them must be min. 30 mm.  After connection the Control Panel must charge the batteries min. 12 hours before complete testing.
