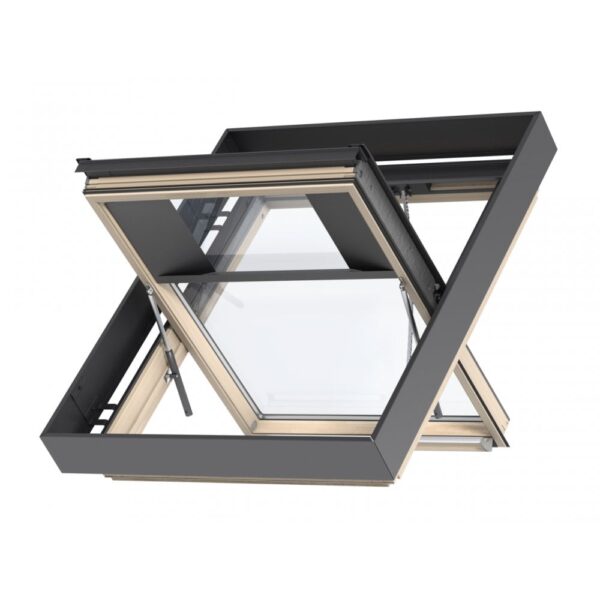

Velux Pitched Roof Smoke Vent Window Pine Lacquered

Natural smoke and heat exhaust ventilators are typically used in common access areas such as stairwells and annex connections as well as in industrial buildings and offices. The smoke ventilation is activated either automatically by a smoke sensor or manually with a break glass point. Natural ventilation for daily comfort is activated with the integrated switch in the control system or via an auxiallry wall switch.

The new high-performance insulation system uses a core of thermally modified timber in combination with a special gasket for a better airtight seal that minimises heat loss and energy consumption.

The extrernal design of Velux smoke ventilation windows matches that of standard Velux roof windows ensuring a harmonious appearance when installed in the same roof (when wind deflectors are not required).

Velux smoke ventilation systems are tested and certified according to EN ISO 12101-2 for roof pitches 15°-90°. Available without wind deflectors where a geometric opening area is required, and with wind deflectors where an aerodynamic area is required.

Features of the Smoke Ventilation System:

• Centre-Pivot roof window made of high quality lacquered natural pine or uPVC.
• For Geometric Smoke Ventilation our systems are tested and certified to EN ISO 12101-2 for roof pitches from 15¬∞-90¬∞.
• For Aerodynamic Smoke Ventilation our systems are tested and certified to EN ISO 12101-2 for roof pitches from 15¬∞-60¬∞.
• Comes with laminated inner pane for additional safety with easy-to-clean coating on outer pane to keep the glazing cleaner for longer.
